Brushless Motor 2830 1000KV (2-3S)
1/5
  • Brushless Motor 2830 1000KV (2-3S)
  • Brushless Motor 2830 1000KV (2-3S)
  • Brushless Motor 2830 1000KV (2-3S)
  • Brushless Motor 2830 1000KV (2-3S)
  • Brushless Motor 2830 1000KV (2-3S)

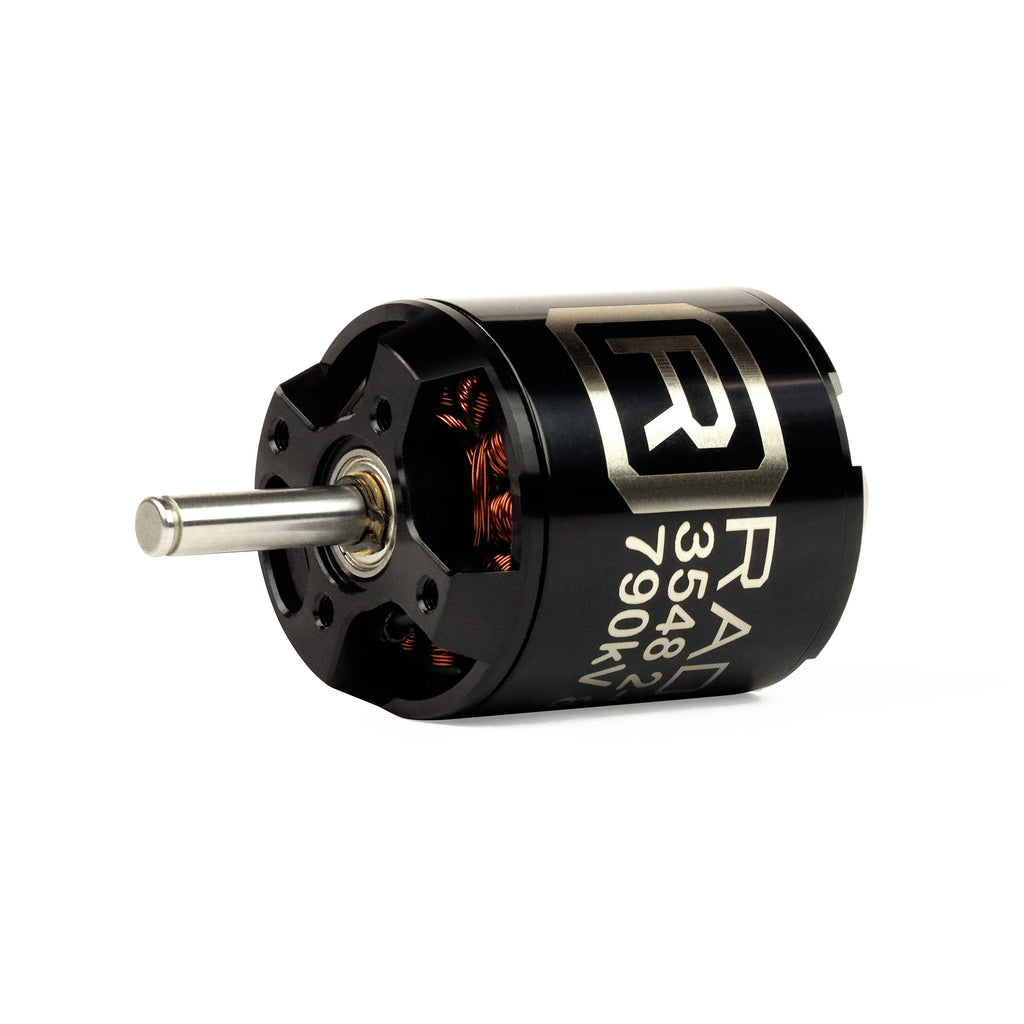

Brushless Outrunner

Radient

Brushless Outrunner

2-4S / 790kV / 840W
SKU: RDNM3548790
In stock (30+ available)

A high-quality, beautifully engineered, smooth and powerful brushless outrunner motor designed and manufactured specifically for model aircraft

£32.99
● = out of stock
Type:
Size:
Selected product doesn't exist, please try another selection
Item out of stock
Variants not selected
Features
  • 14 Pole 12 slot hi-torque rotor.
  • CNC-machined 6061-T6 billet heatsink can.
  • High purity, maximum efficiency copper windings.
  • High RPM ABEC5 oversized bearings.
  • Precision balanced rotor offers smooth, reliable performance.
  • Super-thin (0.2mm) stator laminations.
  • Precision engineered for maximum energy conversion.
Found in...
Find more products like this in these collections:

All Products, Brands, Electronics, Motion & Control, Motors & Actuators

Description
Designed specifically for use in model aircraft, all Radient high-torque brushless motors feature a 14 pole precision-balanced rotor, 6061-T6 aluminium alloy front and rear covers, high purity copper windings and a heavy-duty stainless steel shaft. It's a combination that, in tandem with high-quality oversize bearings, offers beautifully smooth running, longevity and an ability to turn large propellers. With a mounting option at either end, Radient brushless outrunners are engineered to offer the flexibility and power you need over a long and trouble-free life.

Specification:
Watts (W): 840
Rec'd ESC (A): 80
Rec'd LiPo (cells): 2-4S
Shaft Dia. (mm): 5.0
Bullet Connector (mm): 3.5
Weight (g): 172
Prop Size / 3S (in): 11x7 / 13x6
Prop Size / 4S (in): 9x7 / 10x8
