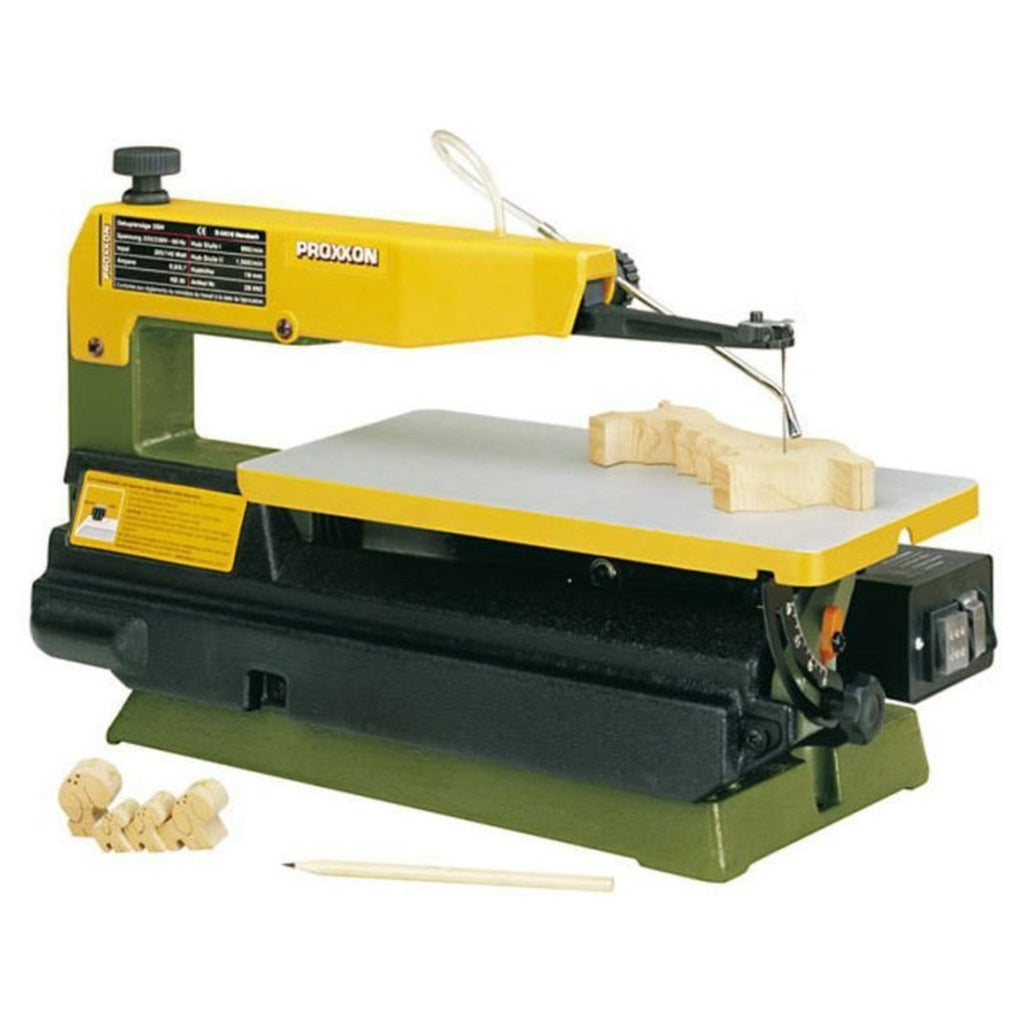

Proxxon Micromot DS 230/E Scroll Saw.

Using the scroll saw DSH allows you to make all the fine, non-right angled cuts you may require in a clean and vertical manner. It is great for working with soft and hard woods, plastic, GRP and NF metals as well as with softer materials like foam rubber, rubber, leather or cork. It is most often used in the realms of architectural and furniture model making, the production of toys (e.g. puzzles), mould making as well as other precision and cabinet making work. The chance of injury when working with this saw is very small - for this reason it is a good choice for use in schools or learning workshops.

The saw performs very respectably and is very quiet in the process - there is only a small amount of hum. Unlike its predecessor, it has an electronically regulated stroke rate which allows you to better adjust the speed to the material being cut and this obviously improves the overall performance.

The slender saw arm gives you an unhindered view towards the back while the adjustable air nozzle keeps the workpiece free of dust. All the different saw blades (fine, round, normal, course, FRET AND SCROLL SAW BLADES) can be easily changed.

The DSH does not come with a lengthwise guide in recognition of the fact that working with a workpiece that is set is problematic with a scroll saw (the blade will tend to move away from the reference line). A hold-down is also not supplied because the necessary feel when feeding the workpiece would be lost. Proxxon recommends instead that you use both hands to press the workpiece forwards from above so that it will not tend to jump away.

Tip: when cutting very hard workpieces (e.g. steel) the blade will tend to wear away relatively quickly. In order to utilize the upper teeth of a blade you should raise up the work area by simply affixing a wood panel the size of the table using double-sided adhesive tape.

The Scroll saw DS 230/E cuts aluminium, wood, PC cards & plastics, an ideal machine for the delicate jobs such as model building, toy making and precision mechanics.

• Cuts soft wood up to 40mm
• Hardwood up to 10mm
• Plastic (also boards) to approx. 4mm
• Non-ferrous metals up to 2mm with standard fret saw blades.
• Machined worktable of die-cast aluminium, 160 x 160mm.
• ABS plastic body with side sliding panel for removal of saw dust.
• 220/240V motor (85W) for prolonged, low noise performance.

Ideal machine for delicate jobs: model making, toy making and precision mechanics.
