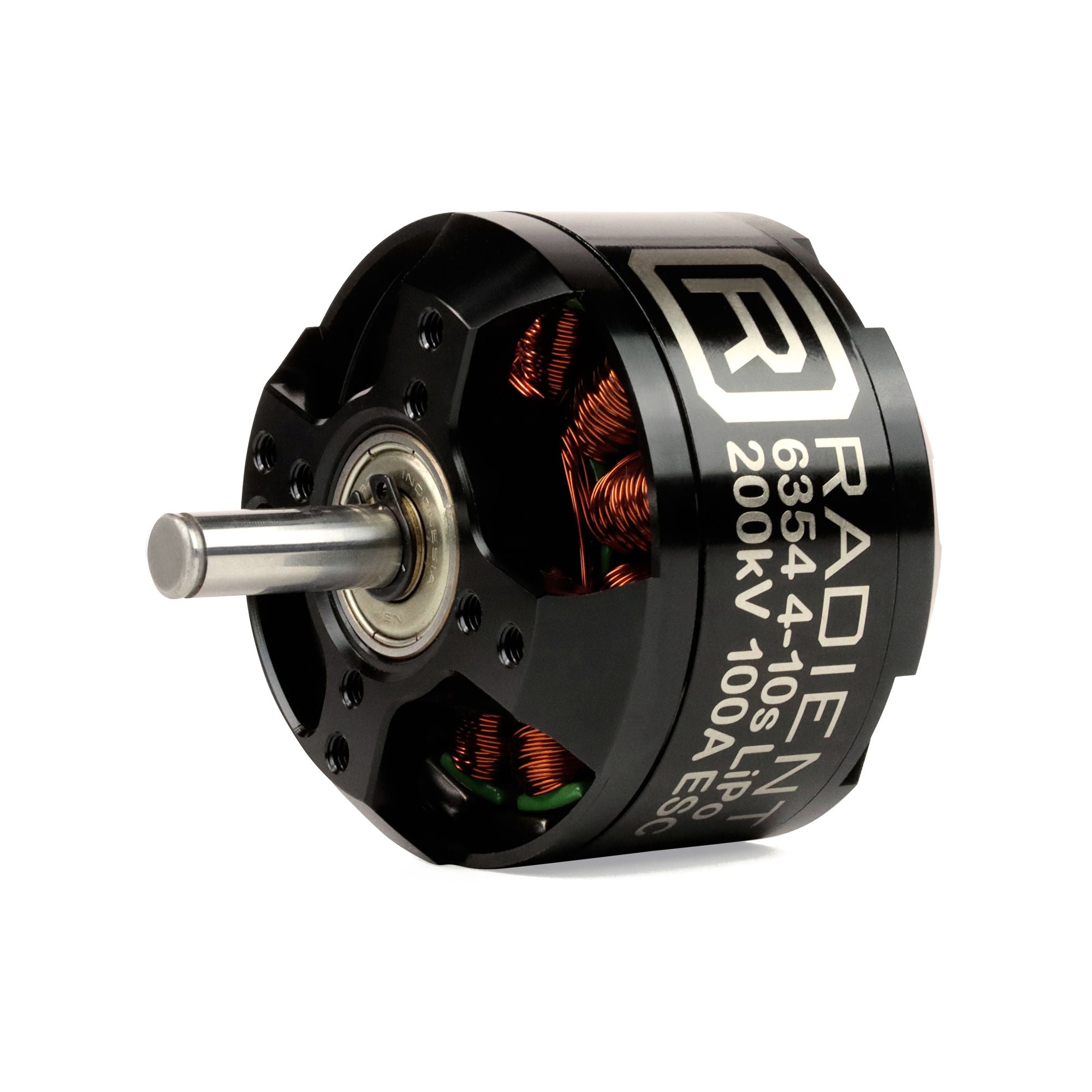

Brushless Outrunner Motor

6354 / 200KV

£83.99

Brushless Outrunner Motor

Radient

Brushless Outrunner Motor

6354 / 200KV(1)

SKU: RDNM6354200

In stock (4 available)

A high-quality, beautifully engineered, smooth and powerful brushless outrunner motor designed and manufactured specifically for model aircraft

£83.99

Selected options

Make your selections below. Type: Size:

Type

Make a selection

Size

Make a selection

This combination doesn't exist — try a different option.

This combination is out of stock.

14 Pole 12 slot hi-torque rotor.
CNC-machined 6061-T6 billet heatsink can.
High purity, maximum efficiency copper windings.
High RPM ABEC5 oversized bearings.
Precision balanced rotor offers smooth, reliable performance.
Super-thin (0.2mm) stator laminations.
Precision engineered for maximum energy conversion.

Find more products like this in these collections:

All Products, Brands, Electronics, Motion & Control, Motors & Actuators

Description

Designed specifically for use in model aircraft, all Radient high-torque brushless motors feature a 14 pole precision-balanced rotor, 6061-T6 aluminium alloy front and rear covers, high purity copper windings and a heavy-duty stainless steel shaft. It's a combination that, in tandem with high-quality oversize bearings, offers beautifully smooth running, longevity and an ability to turn large propellers. With a mounting option at either end, Radient brushless outrunners are engineered to offer the flexibility and power you need over a long and trouble-free life.

Brushless Motor Specifications

Motor Model	Watts (W)	Rec'd ESC (A)	LiPo (Cells)	Shaft Dia (mm)	Bullet (mm)	Weight (g)	Prop Sizes (Recommended)
2822 1600KV	180	20	2-3S	3.0	3.5	30	2S: 8x4 / 9x6 \| 3S: 7x4 / 8x4
2822 2300KV	180	20	2-3S	3.0	3.5	30	2S: 6x3 / 7x3.5 \| 3S: 5x4 / 6x3
2826 1000KV	220	20	2-3S	3.0	3.5	45	2S: 10x6 / 11x6 \| 3S: 9x6 / 10x5
2826 1300KV	240	30	2-3S	3.0	3.5	45	2S: 9x6 / 10x5 \| 3S: 8x4 / 9x5
2826 1900KV	250	30	2-3S	3.0	3.5	45	2S: 8x4 / 9x5 \| 3S: 7x4 / 8x4
2826 2200KV	270	30	2-3S	3.0	3.5	45	2S: 6x4 / 7x3 \| 3S: 5x4 / 6x3
2830 1000KV	260	30	2-3S	3.0	3.5	57	2S: 10x6 / 11x5.5 \| 3S: 9x6 / 10x5
2830 1300KV	300	30	2-3S	3.0	3.5	57	2S: 9x6 / 10x6 \| 3S: 8x6 / 9x6
2836 880KV	340	30	2-4S	4.0	3.5	67	3S: 10x6 / 11x5.5 \| 4S: 9x6 / 10x6
2836 1100KV	380	30	2-4S	4.0	3.5	67	3S: 9x6 / 10x6 \| 4S: 8x6 / 9x6
2836 1200KV	390	30	2-4S	4.0	3.5	67	3S: 9x6 / 10x6 \| 4S: 8x6 / 9x6
3530 1100KV	310	50	2-4S	4.0	4.0	109	3S: 10x6 / 11x5 \| 4S: 9x6 / 10x6
3536 1050KV	500	60	2-4S	4.0	4.0	109	3S: 10x6 / 11x5 \| 4S: 9x6 / 10x6
3536 1300KV	680	60	2-4S	4.0	4.0	109	3S: 9x6 / 10x6 \| 4S: 8x6 / 9x5
3536 1500KV (E2K)	750	80	2-4S	4.0	4.0	109	3S: 8x6 / 9x5 \| 4S: 8x4 / 8x5
3542 1000KV	750	60	2-4S	5.0	4.0	132	3S: 11x5 / 12x6 \| 4S: 8x7 / 9x8
3542 1250KV	850	80	2-4S	5.0	4.0	132	3S: 9x6 / 10x5 \| 4S: 8x4 / 9x5
3548 790KV	840	80	2-4S	5.0	4.0	172	3S: 11x7 / 13x6 \| 4S: 9x7 / 10x8
3548 900KV	1000	80	2-4S	5.0	4.0	172	3S: 10x7 / 12x7 \| 4S: 9x6 / 10x7
3548 1100KV	1100	80	2-4S	5.0	4.0	172	3S: 11x5.5 / 11x6 \| 4S: 8x6 / 9x6
4250 800KV	1250	80	2-5S	5.0	4.0	205	3S: 13x6 / 14x7 \| 5S: 12x8 / 13x7
4260 600KV	1500	80	3-5S	5.0	4.0	275	4S: 12x6 / 13x6 \| 5S: 11x6 / 12x6
5045 720KV	860	80	3-5S	6.0	4.0	195	4S: 13x6 / 14x6 \| 5S: 12x6 / 13x6
5055 570KV	1550	80	4-6S	6.0	4.0	275	4S: 14x7 / 15x6 \| 6S: 13x6 / 14x5
5055 760KV	1660	100	3-5S	6.0	4.0	275	4S: 13x6 / 14x6 \| 5S: 12x6 / 13x6
5065 335KV	1660	100	4-7S	6.0	4.0	375	6S: 18x8 / 19x7 \| 7S: 17x7 / 18x6
5065 435KV	1750	100	4-6S	6.0	4.0	375	4S: 18x7 / 19x6 \| 6S: 17x6 / 18x5
6354 200KV	2210	100	4-10S	8.0	4.0	480	8S: 19x12 / 22x12 \| 10S: 18x12 / 20x10
